0.5mm Corrugated Polyester Roofing Sheet in Slate Blue - 13/3 1000mm

0.5mm Corrugated Polyester Roofing Sheet in Slate Blue - 13/3 1000mm
by Colour Clad Profiles Ltd

Colour Clad Profiles 13/3 Single Skin 0.5mm Polyester (paint finish) Corrugated Roofing Sheets deliver an effective solution for your roofing requirements. Colour Clad can manufacture corrugated in your required length, offering a traditional cladding style. Our 13/3 is considered an older roofing profile which can be found on many domestic and agricultural sites... Read more

Sale
£14.40
£11.10 /m INC VAT
Truck

Lightning-speed delivery across the UK!
With our in-house fleet and dedicated team, your roofing orders are guaranteed to arrive on time. No matter the size, Experience the fastest service nationwide!

Person carrying a box

Need it pronto?
Click, collect stock items, and conquer your to-do list in under an hour! Swing by and find your order prepped and waiting. 01278 557002 to double-check stock levels. We can make it happen.

Click here to view all of our sheets manufactured with Anticon.

Description

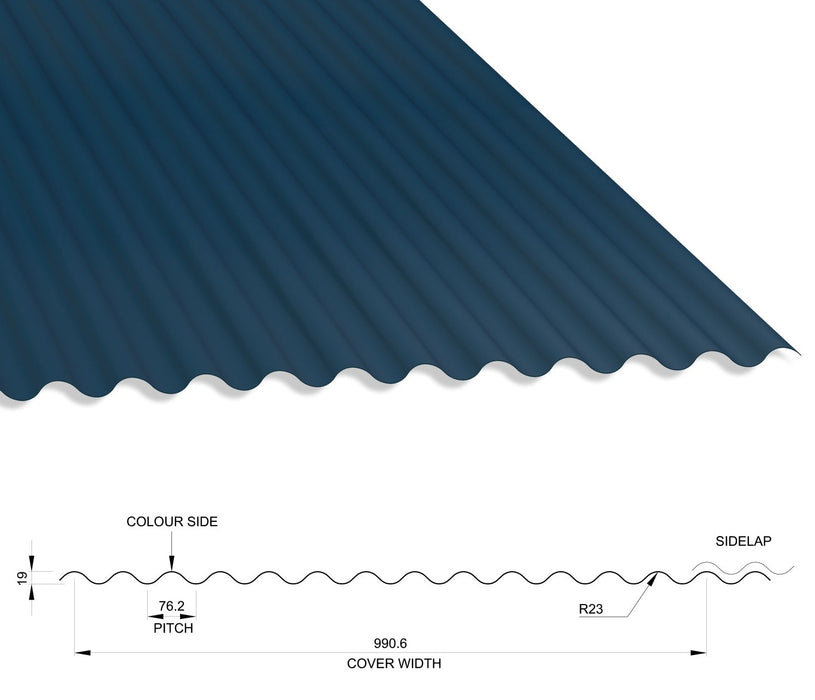

Colour Clad Profiles 13/3 Single Skin 0.5mm Polyester (paint finish) Corrugated Roofing Sheets deliver an effective solution for your roofing requirements. Colour Clad can manufacture corrugated in your required length, offering a traditional cladding style. Our 13/3 is considered an older roofing profile which can be found on many domestic and agricultural sites throughout the UK. Our sheets can be used for domestic, commercial and industrial applications and offer a high-quality, cost effective solution for your roofing projects. CCP13/3 offers a 76.2mm pitch across the sheet width and 19mm profile height and a rounded finish. CCP13/3 Polyester (paint finish) sheeting is manufactured using Prime material and manufactured in house ensuring quality is delivered every time. Each of our sheets offer 990mm cover width when lapped. If you would like to see what other Roofing Sheets we offer please click here.

SHEET MEASUREMENTS
  • Cover Width: 990mm when lapped
  • Profile Height: 19mm
  • Pitch: 76.2mm
  • Sheet Thickness: 0.5mm
  • Minimum Roof Pitch: 4 Degrees
  • Weight: 0.5mm = 4.9kg per/m approx.
  • Max Sheet Length: 8m in 0.5mm thickness, longer lengths we recommend 0.7mm
  • Colours: Juniper Green, Slate Blue, Goosewing Grey, Anthracite Grey, Merlin Grey, Olive Green, Terracota, Sargasso, Ocean Blue, White, Van-Dyke Brown, Goosewing Grey, Galvanised
LOAD SPAN TABLES

Imposed Load (+ve)

Narrow Flange in Compression (Single Span)

Deflection Limit L/200 *

FACTORED IMPOSED LOADS (kN/m2)                                                                                                                    (positive +ve)

Thickness

(mm)

Weight (kg/m2)

Span Condition

Span (m)

1.00

1.10

1.20

1.30

1.40

1.50

1.60

1.70

1.80

1.90

2.00

2.10

2.20

2.30

2.40

0.50

4.95

Single

1.58

1.17

0.89

0.70

0.56

-

-

-

-

-

-

-

-

-

-

Double

2.03

1.74

1.51

1.32

1.17

1.04

0.89

0.74

0.62

0.52

-

-

-

-

-

Multi

2.43

1.95

1.49

1.16

0.93

0.75

0.61

0.51

-

-

-

-

-

-

-

0.70

6.47

Single

2.34

1.74

1.33

1.04

0.83

0.67

0.55

-

-

-

-

-

-

-

-

Double

3.66

3.10

2.66

2.31

1.99

1.61

1.32

1.10

0.92

0.78

0.67

0.57

-

-

-

Multi

3.91

2.90

2.22

1.73

1.38

1.11

0.91

0.76

0.64

0.54

-

-

-

-

-



Wind Suction Load (-ve)

Broad Flange in Compression (Single Span)

Deflection Limit L/150 *

FACTORED IMPOSED LOADS (kN/m2)                                                                                                                    (positive +ve)

Thickness

(mm)

Weight (kg/m2)

Span Condition

Span (m)

1.00

1.10

1.20

1.30

1.40

1.50

1.60

1.70

1.80

1.90

2.00

2.10

2.20

2.30

2.40

0.50

4.95

Single

1.87

1.41

1.08

0.85

0.68

0.55

-

-

-

-

-

-

-

-

-

Double

3.10

2.56

2.15

1.83

1.58

1.33

1.10

0.92

0.77

0.66

0.56

-

-

-

-

Multi

3.12

2.34

1.80

1.42

1.14

0.92

0.76

0.63

0.53

-

-

-

-

-

-

0.70

6.47

Single

2.78

2.09

1.61

1.27

1.01

0.82

0.68

0.57

-

-

-

-

-

-

-

Double

4.56

3.77

3.17

2.70

2.33

1.99

1.64

1.36

1.15

0.98

0.84

0.72

0.63

0.55

-

Multi

4.64

3.49

2.68

2.11

1.69

1.37

1.13

0.94

0.80

0.68

0.58

0.50

-

-

-



Notes

  1. This table has been produced for roof cladding applications. However, it can be safely used for wall cladding.
  2. Safe Imposed loads factored by 1.6 Wind suction loads factored by 1.4
  3. Deflection limit applied to imposed loads –L/200
  4. Deflection limit applied to suction loads –L/150

CCP recommend the use of 0.7mm thick material for roof cladding

ANTI-CON LINING

Click here for all of our Anti-con products

Anti-Con is an effective solution to combat the effects of water condensation on the underside of your roof cladding.  Colour Clad apply the Anti-Con (DR!PSTOP) lining during the manufacturing process, its rolled simultaneously with the steel through or profiling mill and applied to the reverse of the roofing sheet.

DR!PSTOP is perfect for single skin applications to ensure any humidity in the air evaporates and is absorbed in locations where it is important that the condensation is under control, Anti-Con is ideal for;

  • Chill Rooms
  • Work Shops
  • Equestrian and Agricultural Buildings
  • Garden Sheds/Summer Houses
  • Garages
  • Grain Stores

As previously mentioned we apply the Anti-Con lining during the roll forming stage, when rolling the roofing sheets we allow the overlap edge to be free of Anti-Con, this in turn will minimise the risk of water being drawn into the lap through symphonic action.

How It Works

Colour Clad Profiles DR!PSTOP solution helps to control condensation in environments where it occurs often. For Anti-Con to work effectively the building has to be adequately ventilated to allow the Anti-Con fleece to dry out between cycles. Ideally the ridge and eaves should be left open without the use of foam fillers, if the use of foam fillers is a requirement then an alternative roof construction should be considered. The roof pitch also has a significant bearing on the products performance and a minimum roof pitch of 10° is recommended, for roof pitches below 10° please seek advice from our sales team.

When Colour Clad Profiles Anti-Con is used in a livestock situation the humidity generated by these animals can be quite high, the table below shows the moisture levels produced by livestock and the area required by each animal to keep humidity levels under 80gm/m²/hour.



Animal

Weight

Moisture Produced

Area Requirement Per Animal

Cows

500kg

361gm/hour

4.51m²

Horses

500kg

361gm/hour

4.51m²

Sheep

100kg

83gm/hour

1.04m²

Pigs

100kg

83gm/hour

1.04m²

Chickens

2.2kg

5.5gm/hour

0.07m²


Storage of your Anti-Con Sheets

Anti-Con lined roofing sheets should be stored (where possible) indoors prior to installation, where this is not possible the packs of material must be stored off the ground and kept dry. Profiled sheets should not be allowed to slide on each other or onto steelwork as this will minimise the chance of the fleece becoming damaged and snagging. If the backing coat becomes dirty it can be cleaned using a pressure washer if possible, in the case of livestock buildings this should be done once a year with a solution containing fungicide.
